Annapurna Cottage Industries
Leaf Plate Making Machinery

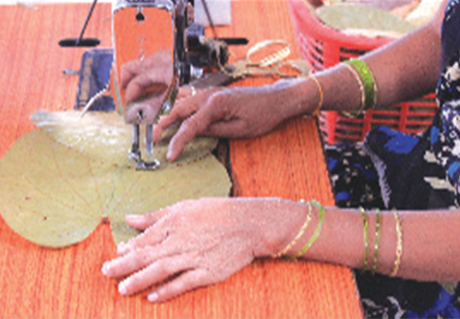

Leaf Stitching Machine: Model LSM 1

The cloth stitching machine is dually modified to stitch the leaves on this stitching machine a women can stitch 300 leaves (16’’ diameter) per 8 hours work. Training in leaf stitching can be given at NIRDPR (National Institute of Rural Development Panchayat Raj).

Enquiry

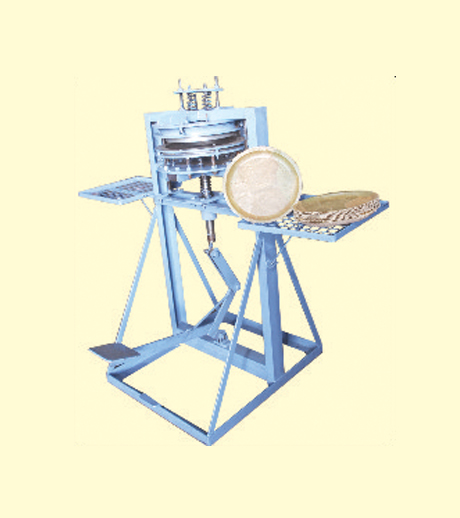

Pedal operated Leaf plate making Machine – Model LPM1

The leaf plate making is manually operated with minimum power consumption. All the operations of folding, Trimming, Pressing into shape and dying are done in one single operation by pressing the peddle liver and holding the headed die for 4 to 60 seconds.

  • Model :
    LPM1 (PEDDAL OPERATION)
  • Production of Paper plates :
    200 buffet paper plates or 500 sitting paper plates per hour
  • Production of Leaf plates :
    100 buffet leaf plates or 200 sitting leaf plates
  • Power Consumption :
    1 unit per hour
  • Delivery Time :
    10 Days
Enquiry

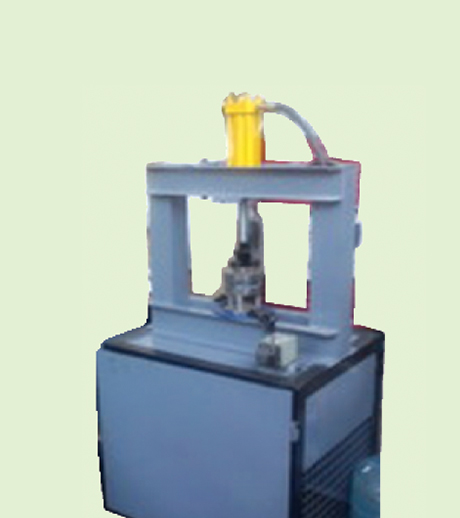

Heavy Duty Single Die Hydraulic Machine – LPM2

Machine runs with 2 HP Motor, a small liver is operated for the function of the machine die up and down movement with required pressure for molding, shaping and trimming.

  • Model :
    LPM2 (Heavy Duty Machine)
  • Power Pack :
    2HP Motor
  • Power Consumption :
    3 Units Per hour
  • Production of Paper plates :
    300 Buffet Paper Plates or 600 Sitting Paper plates
  • Production of Leaf Plates :
    200 Buffet Leaf Plates or 300 Sitting Leaf Plates
  • Delivery Time :
    10 Days
Enquiry

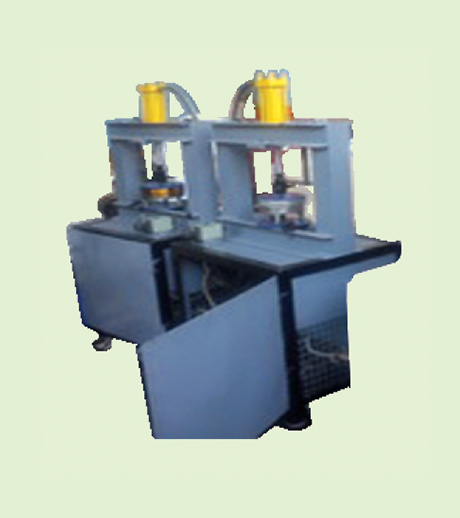

Heavy Duty Double Die Hydraulic Machine – LPM3

Machine runs with 2HP Motor, two livers is operated for the function of two die.

  • Model :
    LPM3 (Heavy Duty Double Die Machine)
  • Power Pack :
    2HP Motor
  • Power Consumption :
    5 Units per Hour
  • Production of Paper plates :
    500 Buffet Paper Plates and 1000 Sitting Paper Plates Per Hour
  • Production of Leaf Plates :
    200 Buffet Leaf Plates and 300 Sitting Leaf Plates
  • Delivery Time :
    10 Days
Enquiry

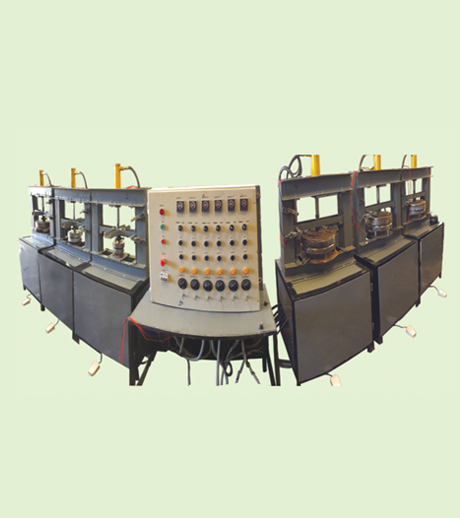

6 Die Heavy Duty Machine - Model LPM4

Machine runs with 2HP to 3HP Motor. We can operate machine with panel board with 6 persons need to operate the machine.

  • Model :
    LPM4 (Automatic Sitting Machine)
  • Power Pack :
    3 HP Motor
  • Power Consumption :
    9 Units per Hour
  • Production of Paper plates :
    400 plates of different size*6 dies, 2400 Numbers of plates can be produced in 1 hour
  • Production of Leaf Plates :
    200 to 300 numbers per die of any size *6 dies, 1800 Numbers of plates can be produced in 1 hour
  • Delivery Time :
    20 Days
Enquiry
