Paper Plate Making Machinery

Pedal operated paper plate making Machine – Model PPM1

The paper plate making is manually operated with minimum power consumption. All the operations of folding, Trimming, Pressing into shape and dying are done in one single operation by pressing the peddle liver and holding the headed die for 4 to 6 seconds.

  • Model :
    PPM1 (PEDDAL OPERATION)
  • Production of Paper plates :
    200 buffet paper plates or 500 sitting paper plates per hour
  • Power Consumption :
    1 unit per hour
  • Delivery Time :
    10 Days
Enquiry

Motor Operated Single Die Hydraulic Machine – Model PPM2

This machine is advanced version of leaf plate making. Machine runs with 1.5 HP motor, a small liver is operated for the function of the machine die up and down movement with required pressure for molding, shaping and trimming.

  • Model :
    PPM2 ( Single Operated Machine)
  • Power Pack :
    1.5 HP Motor
  • Power Consumption :
    3 units per hour
  • Production of Paper plates :
    1000 Sitting Paper Plates or 500 Buffet Paper Plates per hour
  • Delivery Time :
    10 Days
Enquiry

Motor Operated Double Die Hydraulic Machine – Model PPM3

This machine is the advanced one for making plates. Machine runs with 2 HP motor, two liver is operated for the function of two die in machine.

  • Model :
    PPM3 (Double Die Machine)
  • Power Pack :
    2 HP Motor
  • Power Consumption :
    5 units per hour
  • Production of Paper plates :
    1000 Sitting Paper & 500 Buffet Plates per hour
  • Plates Delivery Time :
    10 Days
Enquiry

3 Die Machine - Model PPM4

Three dies and three persons can operate at a time for the production of 3000 number of paper plates per hour (Metalized Polyester and craft paper 3 number of sheets at a time can feed in the die for higher production) i.e. 800 strokes per hours, This machine runs on 3HP motors and Power consumption is 80 units per 10 hours of production work.

  • Model :
    PPM4 (3 Die Machine)
  • Power Pack :
    3HP Motor
  • Power Consumption :
    8 units per hour
  • Production of Paper plates :
    3000 Sitting Paper Plates per hour or 1500 buffet plates per hour
  • Delivery Time :
    10 Days
Enquiry

Heavy Duty Single Die Hydraulic Machine – Model PPM5

Machine runs with 2 HP Motor, a small liver is operated for the function of the machine die up and down movement with required pressure for molding, shaping and trimming.

  • Model :
    PPM5 (Heavy Duty Machine)
  • Power Pack :
    2HP Motor
  • Power Consumption :
    3 Units Per hour
  • Production of Paper plates :
    300 Buffet Paper Plates or 600 Sitting Paper plates
  • Delivery Time :
    10 Days
Enquiry

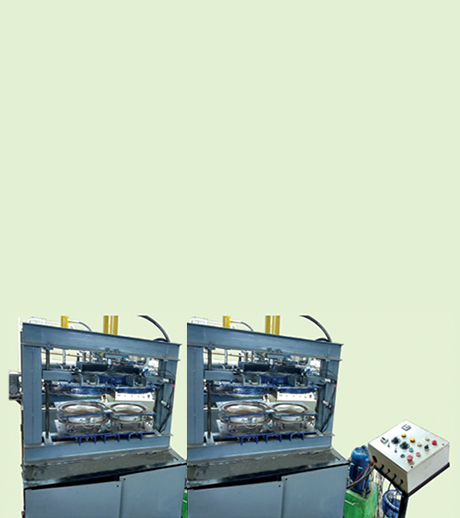

Heavy Duty Double Die Hydraulic Machine – Model PPM6

Machine runs with 2HP Motor, two livers is operated for the function of two die.

  • Model :
    PPM6 (Heavy Duty Double Die Machine)
  • Power Pack :
    2HP Motor
  • Power Consumption :
    5 Units per Hour
  • Production of Paper plates :
    500 Buffet Paper Plates and 800 Sitting Paper Plates Per Hour
  • Delivery Time :
    10 Days
Enquiry

Fully Automatic Sitting Dies Machine- Model PPM7

Machine runs with 2HP Motor, gear box motor 0.5 HP to 0.25 HP Convair Motors, We can operate machine with panel board only one person need to operate the machine.

  • Model :
    PPM7 (Automatic Sitting Plate Machine)
  • Power Pack :
    2HP Crompton motor single Phase/3 phase
  • Power Consumption :
    6 Units per Hour
  • Production of Paper plates :
    3000 – 4000 Sitting paper plates per hour
  • Delivery Time :
    20 Days
Enquiry

Buffet Automatic Twin Dies Machine – Model PPM8

Machine runs with 2HP Motor, we can operate machine with panel board only one person need to operate the machine

  • Model :
    PPM8
  • Power Pack :
    2HP Crompton Motor single phase/3 phase
  • Power Consumption :
    4 units per hour
  • Production of Paper plates :
    2000 – 2500 Buffet Paper Plates per hour
  • Delivery Time :
    15 Days
Enquiry

Buffet Automatic Double Twin Die Machine – Model PPM9

Machine runs with 2 HP Motor, we can operate machine with panel board only one person need to operate the machine.

  • Model :
    PPM9
  • Power Pack :
    2 HP Crompton motor single phase/3 phase
  • Power Consumption :
    6 Units per Hour
  • Production of Paper plates :
    4000 – 5000 Buffet Paper Plates per hour
  • Delivery Time :
    20 Days
Enquiry

Note: We can manufacture the machine according to the customers requirement.
